Removing the Lower Engine Cover

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

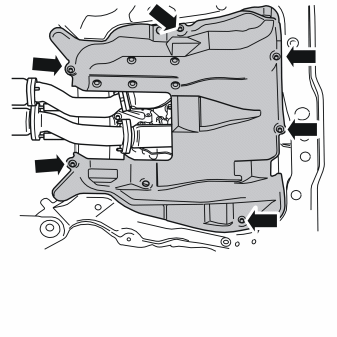

Fig 1: Identifying Lower Engine Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the splash guard.

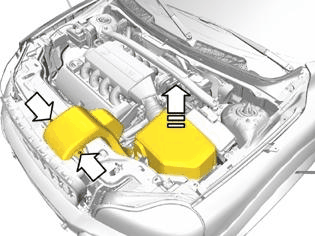

Fig 2: Locating Air Cleaner Cover And Fresh Air Intake Hose

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

cover over air cleaner by pulling straight up
screws, 2 pcs, for fresh air hose in front plate
fresh air intake hose.

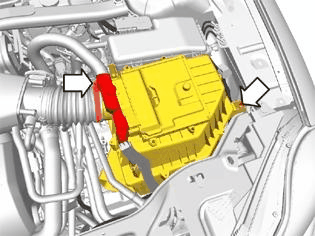

Fig 3: Identifying Air Cleaner, Nut And Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

nut in front left wing
hose clip for air bellows
connectors to engine control module (ECM)
the connector for the mass airflow sensor (MAF)
air cleaner.
