Installing the Air Cleaner (ACL)

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Air Cleaner, Nut And Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the connector for the mass airflow sensor (MAF)
hose clip for air bellows
connectors to engine control module (ECM)
nut in front left wing.

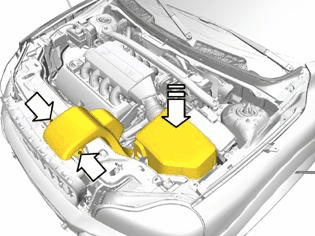

Fig 2: Locating Air Cleaner Cover And Fresh Air Intake Hose

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the fresh air intake hose
screws, 2 pcs, for fresh air hose in front plate
cover over air cleaner.
