Removing the Panel Gear Shift Selector

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

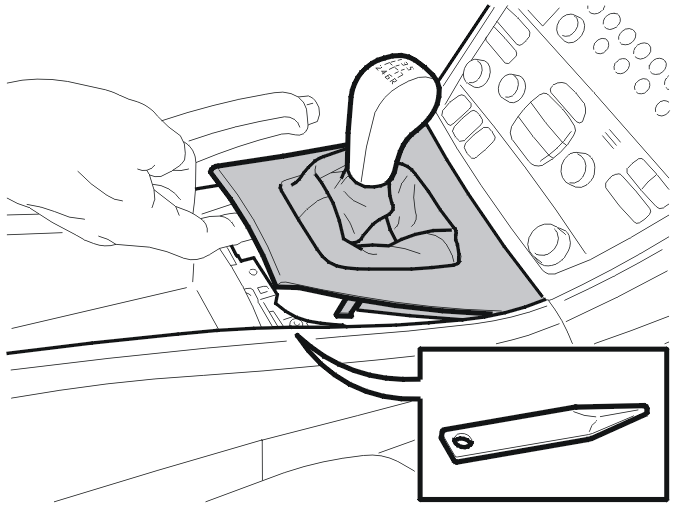

Fig 1: Removing Gear Selector Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Move the gear selector/gear selector lever to a rear position.

Detach the panel at the rear edge using a weatherstrip tool.

Then carefully detach the front edge of the panel.

Fig 2: Replacing Gear Selector Lever Boot

Courtesy of VOLVO CARS OF NORTH AMERICA.

Open the 4 catches on the underneath.

Press the inner section of the panel up and release the frame.

CAUTION: Do not lift/pull the boot to prevent damaging the seams.
