Removing the Gear Selector Cable And Connector
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

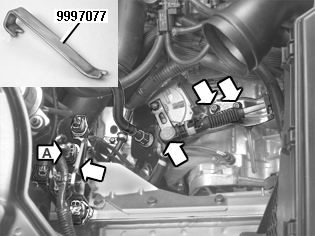

Remove the transmission cable from the lever. Use jimmy bar 9997077 and the cable mounting from the transmission.
Unhook the mounting and the connector for the transmission from the bracket.
Remove the tie straps for the cable harness and the mounting in the cover for the control system.
Separate connector A for the gear-shift position sensor. Remove the gear-shift position sensor from the mounting.
