Adjust the Gear Position Sensor

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

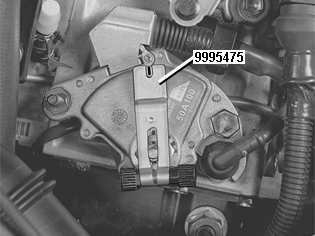

Fig 1: Identifying Adjustment Tool 9995475

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Press the tool down towards the flat surfaces below the thread on the shaft.

Remove the nut for the cable duct. Lift the cable duct away from the screw.

Slacken off the screws for the gear-shift position sensor.

Rotate the gear position sensor so that the mark on the switch aligns with the groove on the tool. Tighten the screws for the sensor. Tighten to 25 Nm .

Remove the adjustment tool.
