Unscrew the Press Tool Center Screw And Remove Tool

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

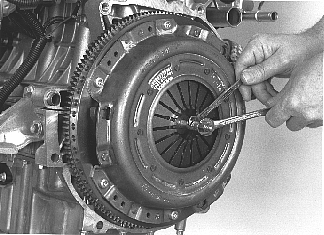

Fig 1: Unscrew The Outer Nut On The Centering Tool
GLL126026Courtesy of VOLVO CARS OF NORTH AMERICA.

Unscrew the outer nut on the centering tool until it feels loose.

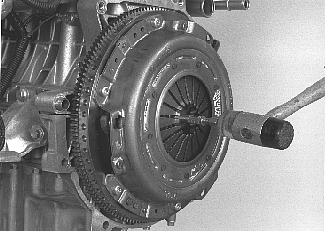

Fig 2: Tapping Centering Tool
GLL126027Courtesy of VOLVO CARS OF NORTH AMERICA.

Tap the centering tool so that its expander is released.

Remove centering tool.
