Position the press tool on the pressure plate diaphragm spring.

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

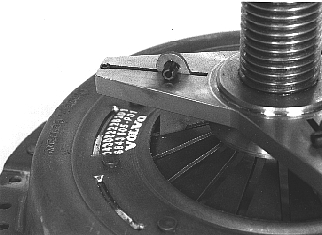

Fig 1: View Of Press Tool Hooks Between Diaphragm Spring Slots
GLL126022Courtesy of VOLVO CARS OF NORTH AMERICA.

Push the press tool hooks between the diaphragm spring slots so that they grip under the edge of the clutch housing.
