New Tools

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

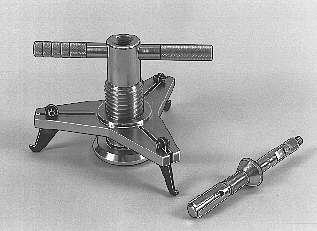

Fig 1: Identifying Press Tool P/N 9995662
GLL126029Courtesy of VOLVO CARS OF NORTH AMERICA.

Press tool, P/N 9995662

Centering tool, P/N 9995663

The earlier clutch driven plate centering tool should no longer be used.)

These tools will be sent out on subscription in May 1996. They can also be ordered from Volvo Car Corporation, Aftersales.
