Installing Clutch Driven Plate And Pressure Plate

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

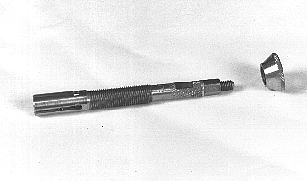

Fig 1: Identifying Cone From The Centering Tool

Courtesy of VOLVO CARS OF NORTH AMERICA.

Unscrew cone from the centering tools.

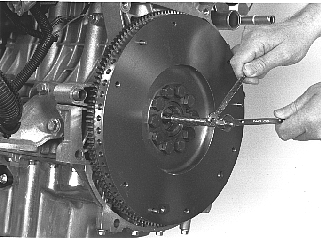

Fig 2: View Of Centering Tool To The Center Of Flywheel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install centering tool as far as it will go into the center of the flywheel.

Use a wrench as a counterhold and tighten the outer nut until the tool expander is secure in the flywheel.

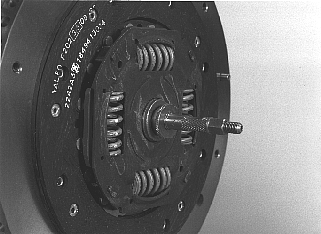

Fig 3: Identifying Clutch Driven Plate On Centering Tool

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install clutch driven plate on centering tool.

Screw on cone and secure clutch driven plate with it. Tighten cone by hand to center the clutch driven plate. Do not tighten too hard, or tighten with a tool, as the cone may damage the clutch driven plate and damping springs.

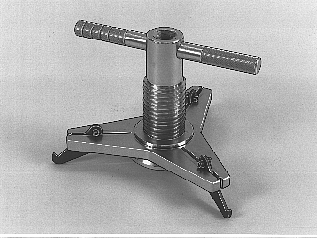

Fig 4: Identifying Press Tool

Courtesy of VOLVO CARS OF NORTH AMERICA.

Unscrew the press tool center screw completely.
