Install Pressure Plate With Press Tool On the Flywheel

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

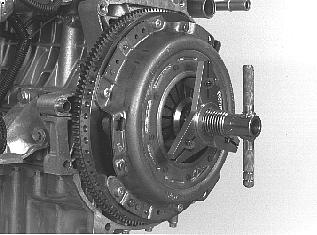

Fig 1: Removing Clutch Driven Plate And Pressure Plate

Courtesy of VOLVO CARS OF NORTH AMERICA.

The center screw is hollow so the centering tool can be installed.

Check that the pressure plate is in contact with the flywheel all around its circumference.

Install pressure plate on flywheel.

First tighten the screws crosswise to contact.

Then tighten screws crosswise to 25 Nm .
