Remove Throwout Bearing

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

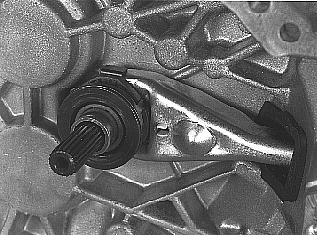

Fig 1: Removing Throwout Bearing From The Guide Sleeve
GLL126017Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove throwout bearing from the guide sleeve and throwout fork.

Remove throwout fork and dust cover.

Check guide sleeve for damage.

Replace guide sleeve if it is worn or burred.
