Clean Components

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

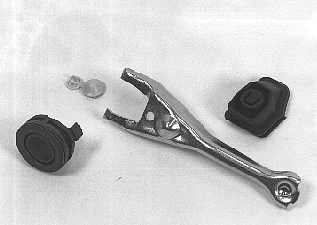

Fig 1: Check The Throwout Fork
GLL126018Courtesy of VOLVO CARS OF NORTH AMERICA.

Check throwout bearing. Lightly turn bearing. bearing should rotate freely and silently.

Check the throwout fork for cracking and wear.

Check that the throwout fork ball joint is intact. If the throwout fork has a plastic ball joint replace the ball joint.

Check that the dust cover is intact.
