Installing the Collision Protection System Over the Steering Gear (Right-Hand Drive Cars Only)

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

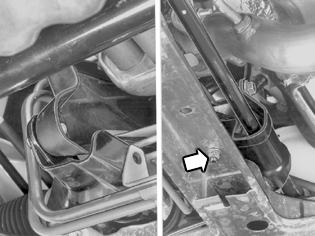

Fig 1: Identifying Impact Absorber Bolts
GLL109112Courtesy of VOLVO CARS OF NORTH AMERICA.

(2 screws.) Tighten with torque: 80 Nm  .
