Preparing for adjustment

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

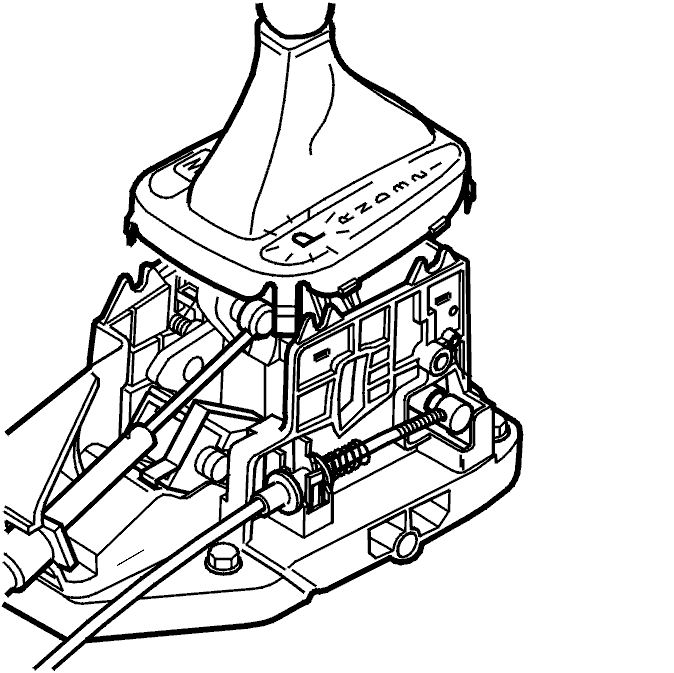

Fig 1: Identifying Gear Selector & Gear Lever
GLL104350Courtesy of VOLVO CARS OF NORTH AMERICA.

Move the gear selector to position P.

Move the gear lever on the transmission to position P.

Push the car until P engages.
