Removing Cover For Control System

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

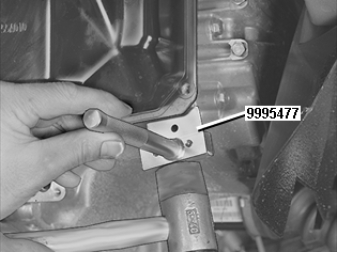

Fig 1: Tapping Gasket Wedge Into Joint

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the cover.

Use gasket wedge . Tap the wedge carefully into the joint between the cover and the transmission to ensure that the cover sealing flange is not distorted.
