Removing the Left Front Wheel

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

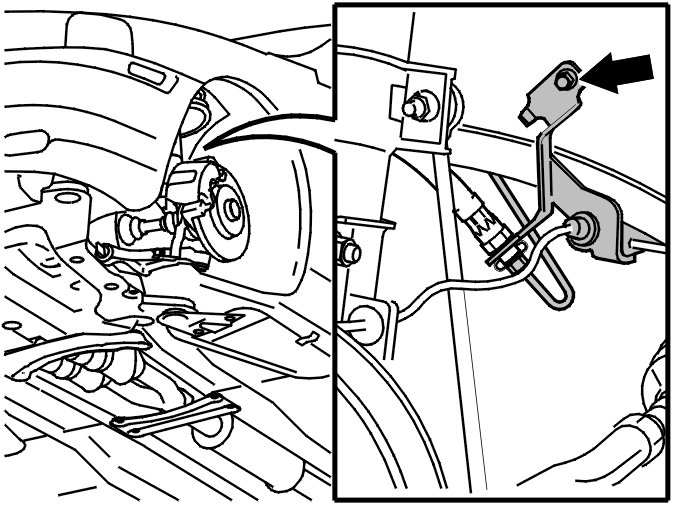

Fig 1: Identifying Mounting For Brake Hose And Pipe
GLL104560Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the left front wheel. Pry the clips apart. Remove the gear selector cable from the clips on the side member.

Remove the mounting for the brake hose and brake pipe.
