Checking the Pressure Plate And Flywheel

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

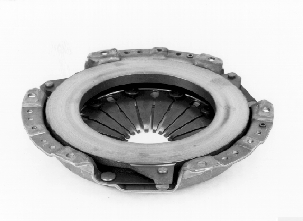

Fig 1: Identifying Pressure Plate And Flywheel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carefully check for traces or overheating, cracks forming, scratches or other damage to the friction surfaces.

Check that the diaphragm spring is not cracked or damaged.

The pressure plate cannot be dismantled, replace it as one complete unit.
