Drilling Holes

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

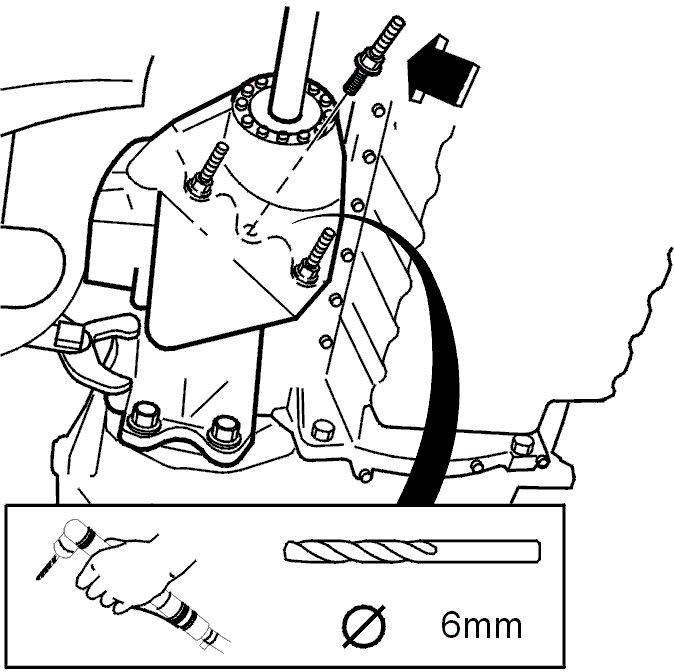

Fig 1: Identifying Vibration Damper, Stud & Level Plug

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION: The oil in the bevel gear MUST be warm before drained.

Remove:

- vibration damper.

- the stud.

- level plug.

NOTE: Place a container under the bevel gear.

WARNING: Oil will poor out of the drilled hole. Use caution oil MAY be warm.

Drill:

- a 6 mm (1/4 Inch) diameter hole in the screwhole bottom in the bevel gear.

Empty:

-the oil from the bevel gear.
