Install the Bracket Included In the Test Equipment

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

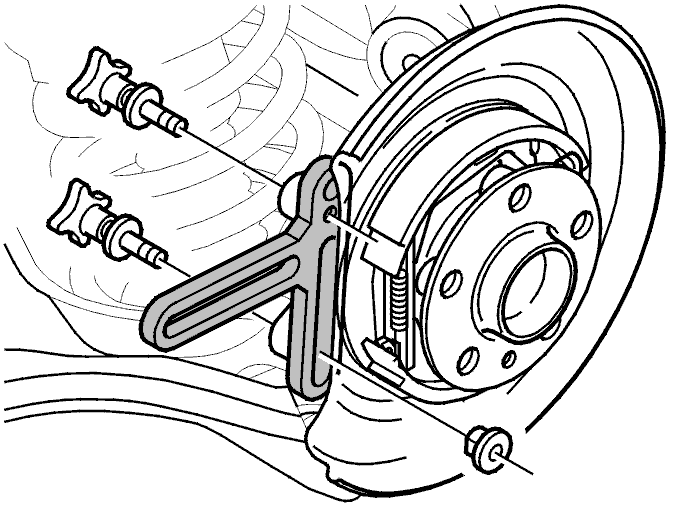

Fig 1: Bracket On Mounting Hole For Brake Caliper
GLL104463Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the bracket on the mounting hole for the brake caliper.

Use the M8 screws and nuts included in kit .

NOTE: The lower nut is specially manufactured and should be located in the bracket.
