Removing the Integrated Relay/Fusebox

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Positive Cable Nut And Terminals

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the nut for the power supply cables
the 2 power supply cables
the 2 screws for the mounting.

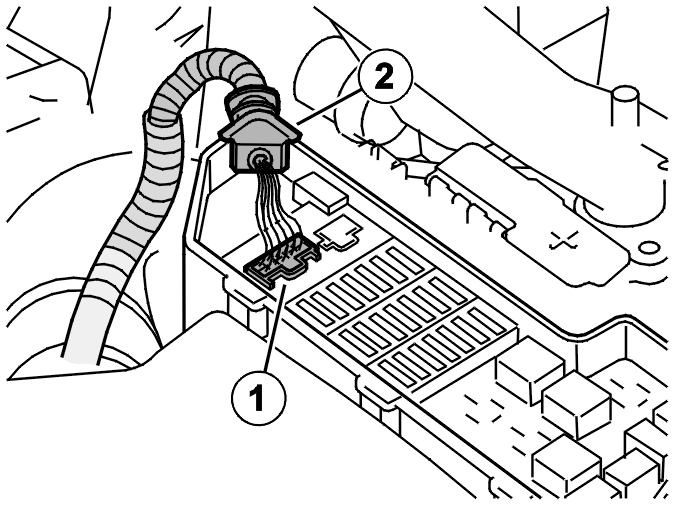

Fig 2: Locating Connector And Cable Harness From Fusebox

Courtesy of VOLVO CARS OF NORTH AMERICA.

Open the integrated relay/fusebox. Remove the connector (1).

Disconnect the cable harness from the box (2).

Lift the box out of the mounting and move it to one side.
