Removing the top panel

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

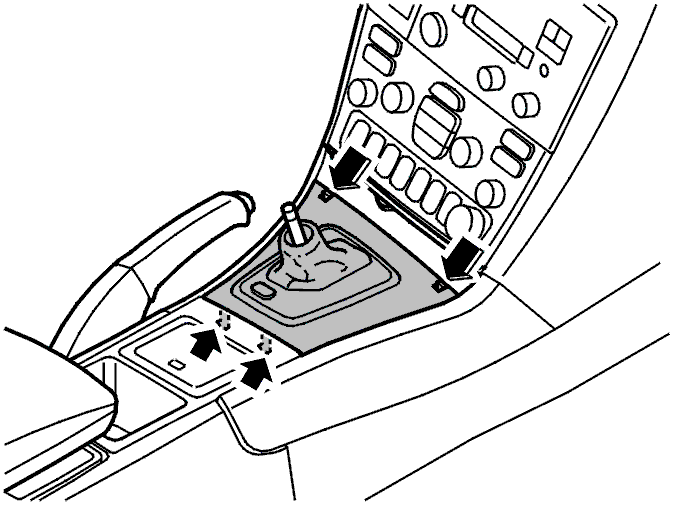

Fig 1: Top Panel Catches
GLL106496Courtesy of VOLVO CARS OF NORTH AMERICA.

Press in the catches. Angle up the panel at the front edge.

Lift the panel out of the rear mountings.
