Removing the boot from the top panel

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

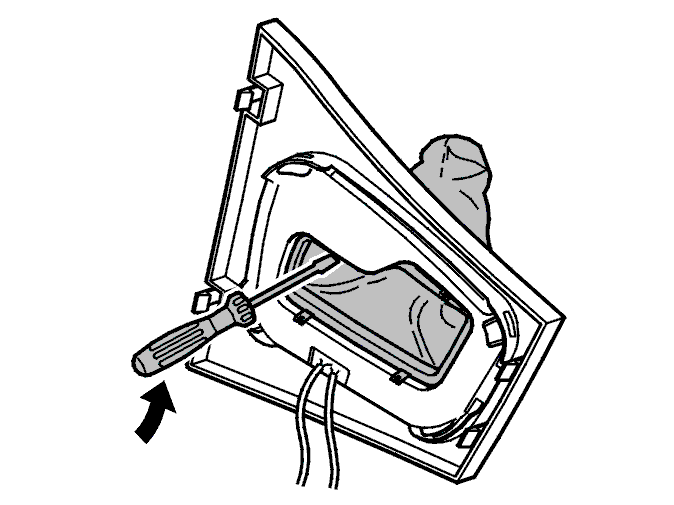

Fig 1: Pressing Out Catches From Top Panel
GLL106497Courtesy of VOLVO CARS OF NORTH AMERICA.

Press out the 4 catches from the top panel. Remove the boot.
