Disconnecting the Connectors

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

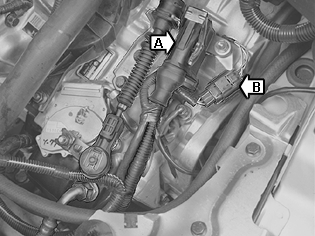

Fig 1: Identifying Transmission Connectors A And B

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connector A:

Press in the catch on the large connector A. Pull the metal striker plate upwards.

Connector B:

Press in the catch on the gray connector B (located next to connector A). Pull the connector straight out.
