Removing the Rear Cover

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

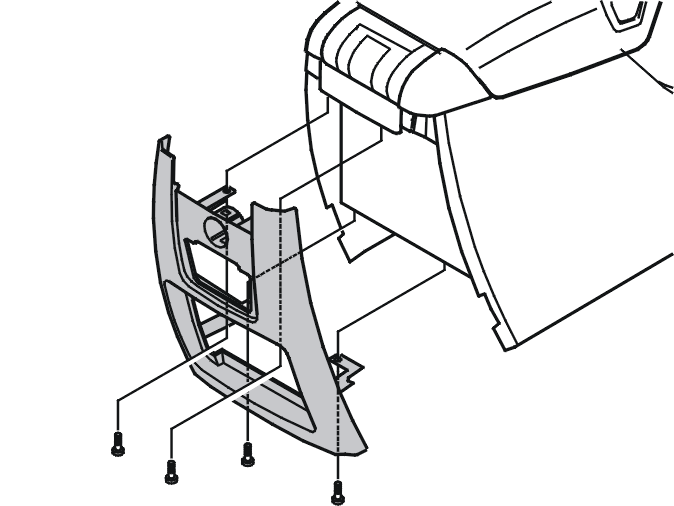

Fig 1: Identifying Rear Cover And Screws
GLL146657Courtesy of VOLVO CARS OF NORTH AMERICA.

Lift up the rear edge of the center console.

Remove:
