Fault-Tracing Information 1-1-1: General
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
The transmission control module (TCM) has been unable to detect electrical faults in the transmission circuit or in transmission-related circuits.
Mechanical faults without diagnostic codes

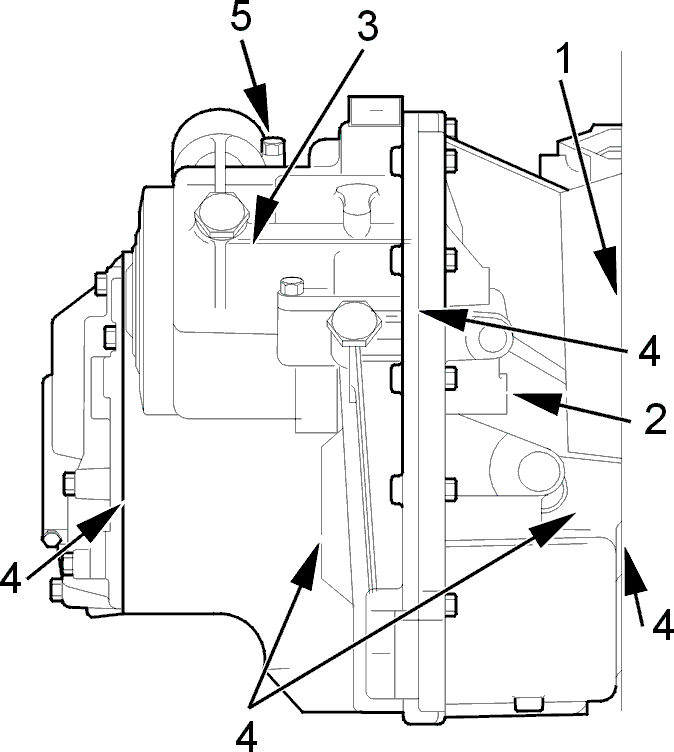

Faults may be purely mechanical, and do not always affect transmission function. Such faults include oil leaks and faults in related components in the drive system. The latter are sometimes indicated by noises which occur when the car is being driven. The illustration below shows where the most common mechanical faults, not indicated by diagnostic codes, may be found.
- Connection between carrier plate and torque converter
- Torque converter
- Inside the actual transmission
- Seals etc. in all joints and connections
- Test plug
