Positioning the lifting table

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

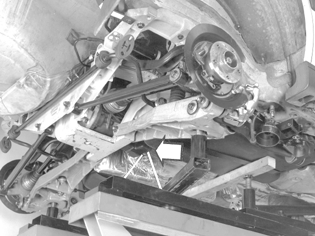

Fig 1: Positioning Lifting Table With Fixture Under Tank And Link Arms

Courtesy of VOLVO CARS OF NORTH AMERICA.

Place the lifting table with fixture under the tank and link arms. See Fig 1.

CAUTION:

Secure the front part of the differential to the lifting table. This prevents the rear suspension from tipping backward when lowered.
