Wipe grease off constant velocity joint

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

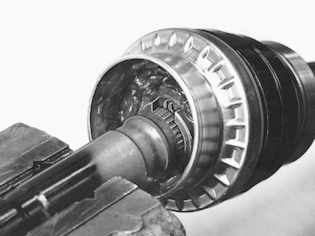

Fig 1: Identifying Constant Velocity Joint
GLL125658Courtesy of VOLVO CARS OF NORTH AMERICA.

Secure the drive shaft in a vise so that the circlip cut-out is upmost.

Position a drift, shaped according to section Adapting a drift between the circlip eyes.
