Expose the outer constant velocity joint

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

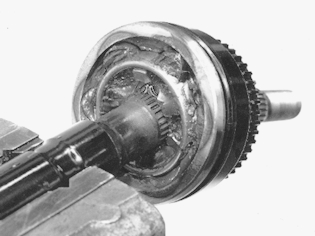

Fig 1: Identifying Outer Constant Velocity Joint

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the clamps from the boot.
Pull the boot off of the constant velocity joint.
Wipe off the grease from the constant velocity joint.
Fasten the drive shaft in a vise so that the recess for the lock ring points up.

Adapt a drift as described in Adapting a drift .
