Cleaning / checking the outer constant velocity joint
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

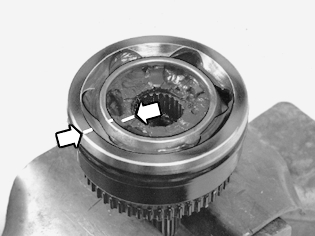

Fig 1: Identifying Outer Ring Of Outer Constant Velocity Joint, Bearing Race, And Inner Ring Marked In Relation To Each Other
NOTE:
The outer constant velocity joint can remain assembled while cleaned.
If it is possible that the constant velocity joint is damaged, continue below. Otherwise, go to Greasing and installation .
Use an electrical etching pin to mark the outer constant velocity joint's outer ring, bearing race and inner ring in relation to each other.
