Remove Bolts From Front Engine Mounting Subframe

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

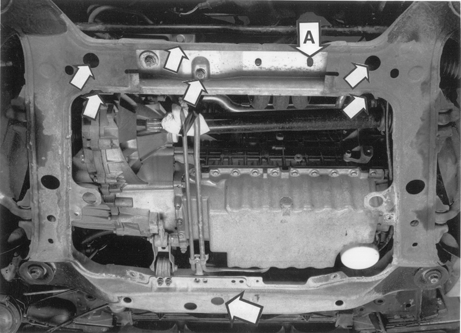

Fig 1: Identifying Front Engine Mounting Subframe Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slacken bolts holding steering gear to engine mounting about one turn.

Remove nuts holding steering gear to subframe (5).

RH drive cars only:

Remove nut (A) to impact absorber/subframe.
