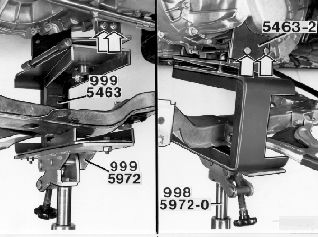

Install Universal Tool 9995972 And Transmission Fixture 9995463 On Jack
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
Install transmission fixture in transmission with torque rod retainer bolts.
- At the same time install support plate (marked 9995463 ) on the fixture.
- Jack up engine.
