Disconnect Hoses From Control Valve (A)

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

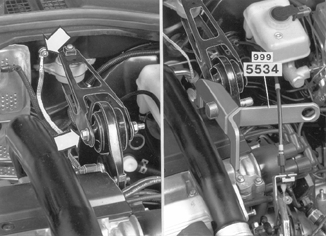

Fig 1: Identifying Steady Bar/Torque Arm To Engine Bolt

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the bolt holding the steady bar/torque arm to engine.

Install lifting fork 9995534 on torque rod - engine
