Remove Clutch
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of VOLVO CARS OF NORTH AMERICA.

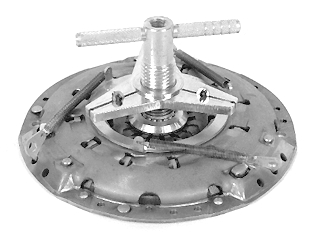

Screw center screws back on to press tool to relieve spring but do not move tool.
CAUTION:
Do not put pressure on diaphragm spring longer than necessary. Relieve pressure on the diaphragm spring as soon as possible.
