Removal of clutch
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of VOLVO CARS OF NORTH AMERICA.
Secure clutch automatic adjustment.
- Before removal the automatic adjuster on the clutch must be locked.

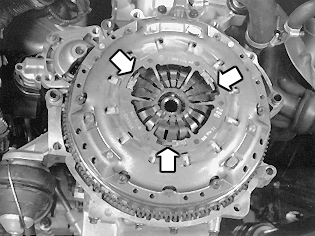

- The three arrows in the illustration show where the clutch automatic adjuster can be locked.
