Install Clutch Driven Plate And Center

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

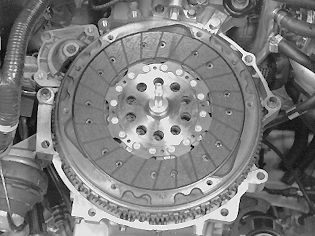

Fig 1: Identifying Clutch Driven Plate And Center

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install clutch driven plate.

Install clutch driven plate on centering drift.

CAUTION: Turn longer part of hub in towards flywheel. Marking on clutch driven plate.

Screw on centering drift black cone and secure clutch driven plate.
Tighten cone by hand to center the clutch driven plate.
Damage to clutch driven plate can occur when tightening with tool.
