Removal Of Sound Insulation

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

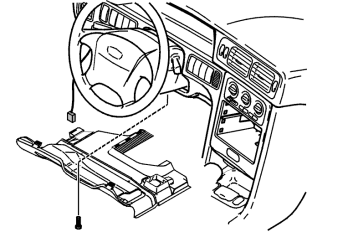

Fig 1: Identifying Left-Hand Side Soundproofing Panel Torx Screw
GLL127344Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove sound insulation, 1 screw, Torx 20.
