Removing Engine Compartment Components

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Battery, Air Cleaner (ACL) Housing & Fresh Air Intake Hose

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the battery
the air cleaner (ACL) housing and the fresh air intake hose.

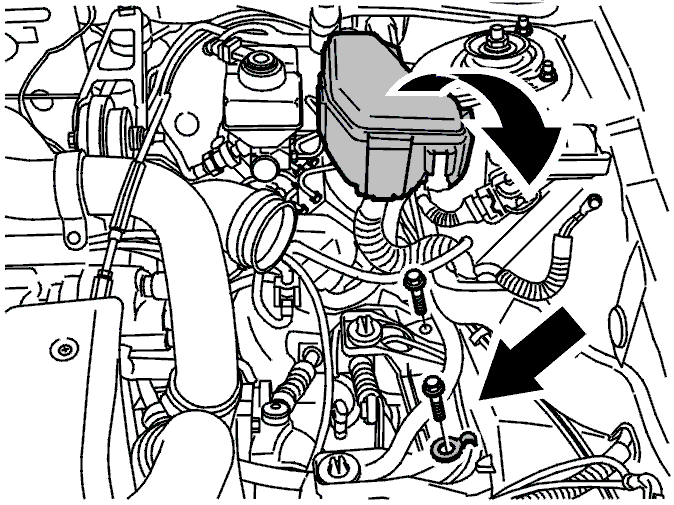

Fig 2: Identifying Air Filter Bracket & Clutch Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the screws for the air filter bracket and the holders for the clutch pipe. Let the bracket hang loose
the fuse/relay unit. Push the fuse/relay unit to one side (applies to cars from 1996-), in order to see the work area more clearly.
