Draining the Brake Fluid Reservoir

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

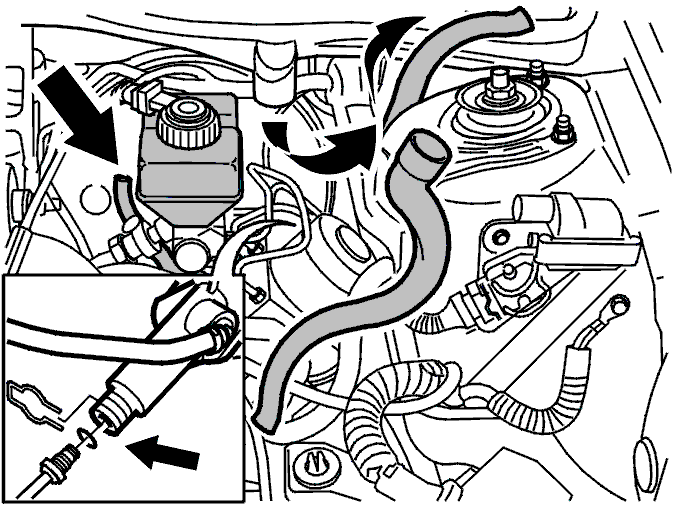

Fig 1: Identifying Brake Fluid Reservoir
GLL125305Courtesy of VOLVO CARS OF NORTH AMERICA.

Drain the brake fluid reservoir so that level is slightly below the MIN marking.

Disconnect the hose from the brake fluid reservoir to the clutch master cylinder. Wipe up any spilled brake fluid.

Disconnect the two drain hoses from the mounting in the member and firewall.

Remove the lock for the clutch pipe. Pull the clutch pipe out of the master cylinder. Protect the opening from dirt.
