Installing Engine Compartment Components

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

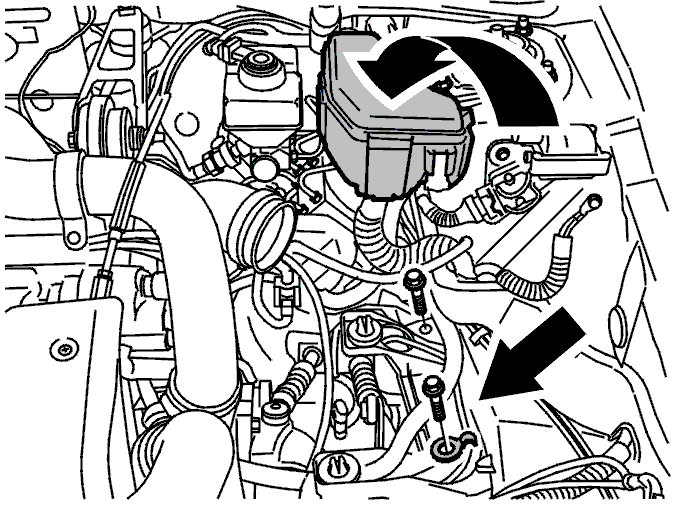

Fig 1: Identifying Air Filter Bracket & Clutch Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the screws for the bracket for the air cleaner (ACL) housing
NOTE: Do not forget the holder for the clutch pipe.
the fuse/relay unit in the holders (applies to cars from 1996-).

Bleed the clutch.

Fill the brake fluid reservoir completely. Use Volvo Genuine parts brake fluid only.

After bleeding, check and top up the level if necessary.

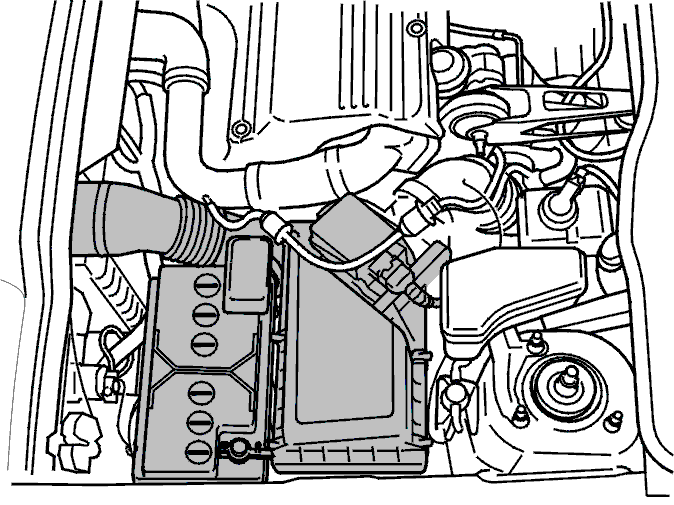

Fig 2: Identifying Battery, Air Cleaner (ACL) Housing & Fresh Air Intake Hose

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the air cleaner (ACL) housing assembly and the fresh air intake hose
the battery.
