Checking fuel pump (FP) ground lead

WARNING: This page is about a different car, the 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Ignition Switch OFF Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off.
Open 2-pin fuel pump (FP) connector (C/BA) in the cargo compartment.

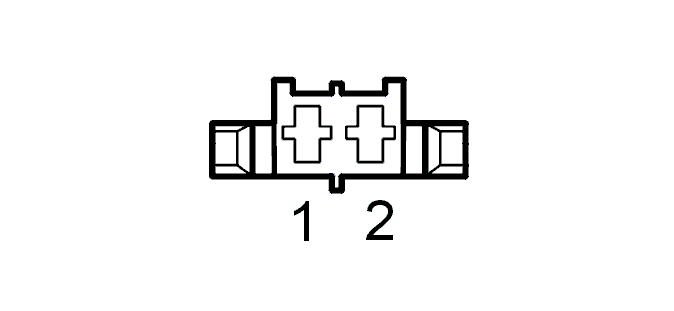

Fig 2: Identifying Fuel Pump Connector
Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Identifying Ohms Display
Courtesy of VOLVO CARS OF NORTH AMERICA.
- Connect an ohmmeter between fuel pump (FP) connector terminal 2 and (fuel pump (FP) relay side) and ground.

The ohmmeter should read approximately 0 Ω.

OK
Refer to Checking the fuel pump (FP)
NOT OK
Refer to Checking fuel pump (FP) ground terminal
