Lifting the engine and transmission to the horizontal position

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

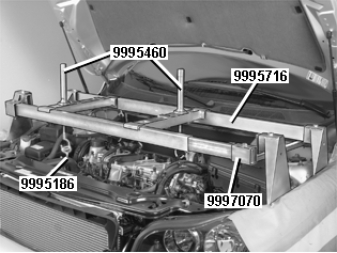

Fig 1: View Of Special Tools Installed (Lifting Beam And Lifting Hook)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lift the engine to slightly above the horizontal position to provide better access to the rear engine mounting and engine pad.

NOTE:

Check that the connection on the hose for the heater is not trapped between the engine and firewall when the engine is lifted.

Raise the car.
