Installing the lower charge air pipe

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

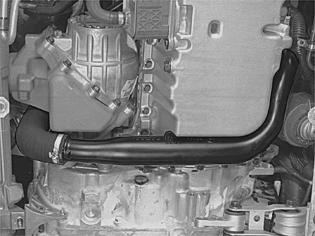

Fig 1: Locating Lower Charge Air Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the charge air pipe on the engine and the hose on the turbocharger (TC).
