Replacing the Hoses And Pipes

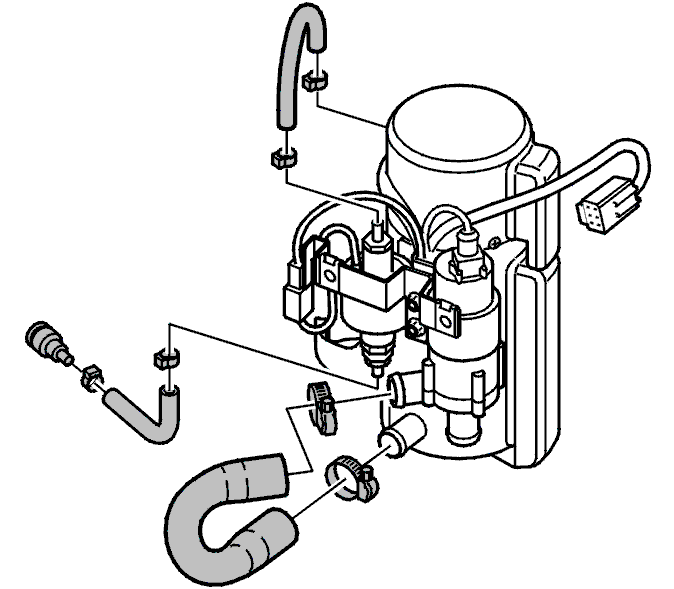

Fig 1: Identifying Quick-Release Connectors, Hose Clamps And Pipe
GLL105249Courtesy of VOLVO CARS OF NORTH AMERICA.

Release the quick-release connectors.

Remove the hose clamps

Replace the hose/pipe.

NOTE: Use Oetiker pincers 3374 to slacken off and secure the Oetiker clamps.
