Fuel Line

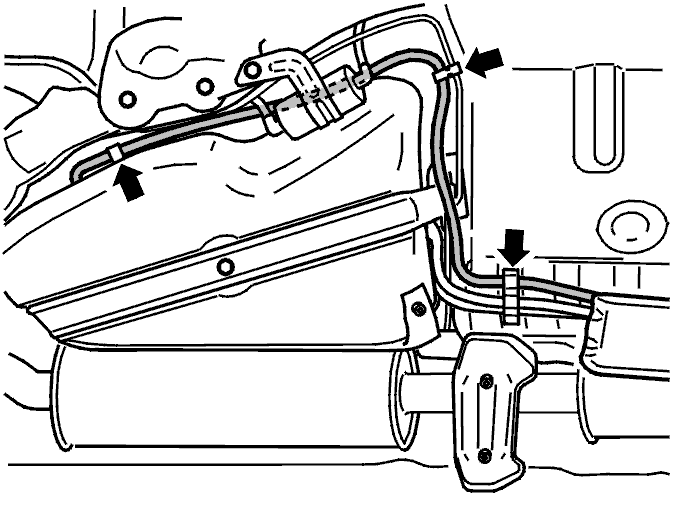

Fig 1: Identifying Quick-Release Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Under the car

• Release the quick-release connectors
• Pull the pipe from the clip.

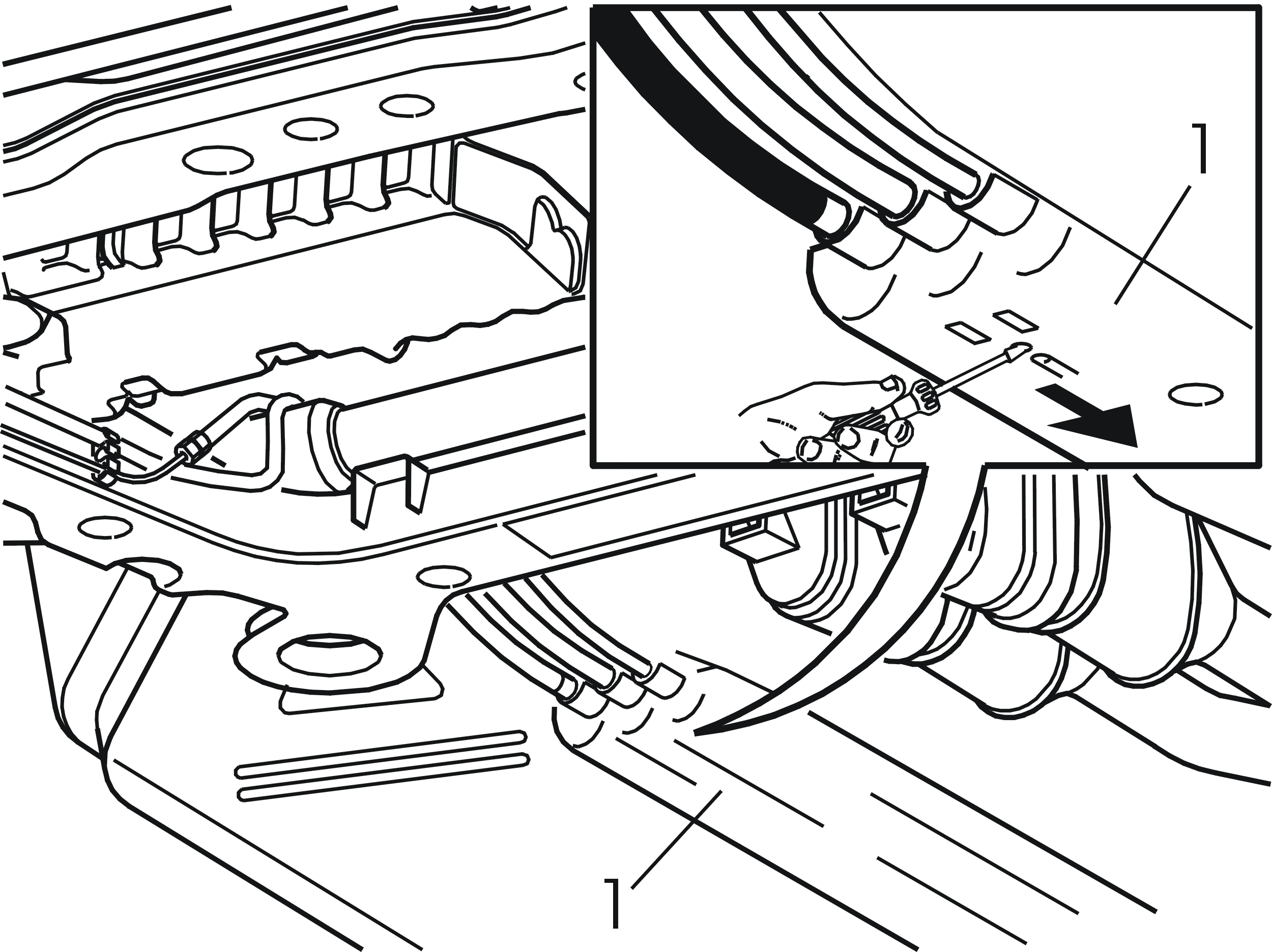

Fig 2: Moving Clips Aside To Remove Fuel Line Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

Move the clips to one side to remove the cover over the fuel line.

Fig 3: Identifying Oetiker Clamps

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Disconnect the hose.
  NOTE: Use Oetiker pincers 3374 to slacken off and secure the Oetiker clamps.
• Disconnect the quick-release connector at the tank.

In the car

• Remove the rear seat cushion. See Cushion
• Remove the insulation.

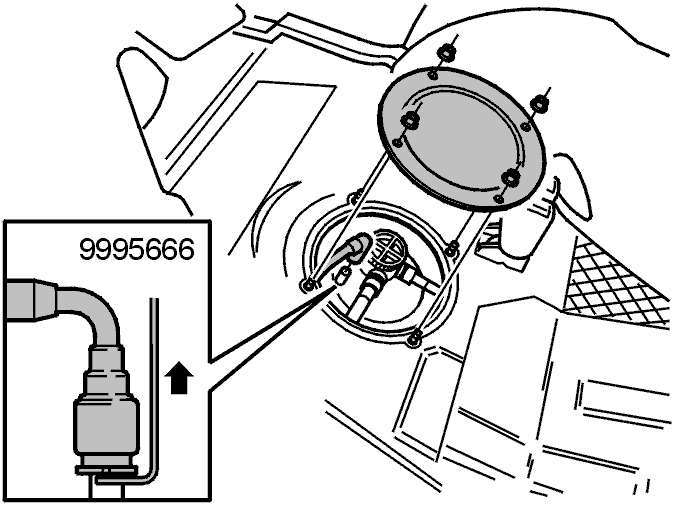

Fig 4: Identifying Quick-Release Connector & Fuel Hose

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the 4 nuts and the inspection hatch
• Pull the hose up from the tank and feed out the remaining section.
