Pressure Equalizer With Fuel Line

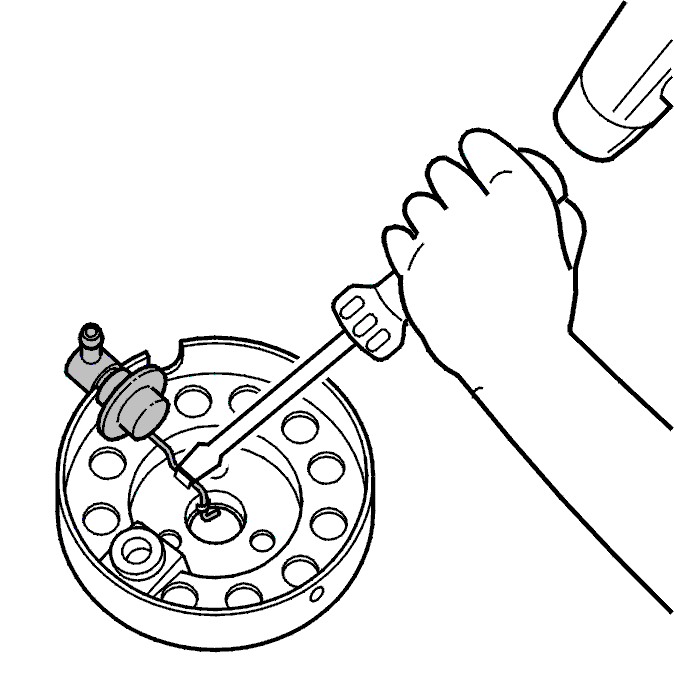

Fig 1: Opening Fuel Line Mountings With Mallet & Screwdriver

Courtesy of VOLVO CARS OF NORTH AMERICA.

Open the mountings around the fuel line: Tap them carefully using a mallet and a screwdriver.

Only open the mountings just enough to remove the fuel line.

Remove the pressure equalizer with the fuel line.
