New Pressure Equalizer With Fuel Line

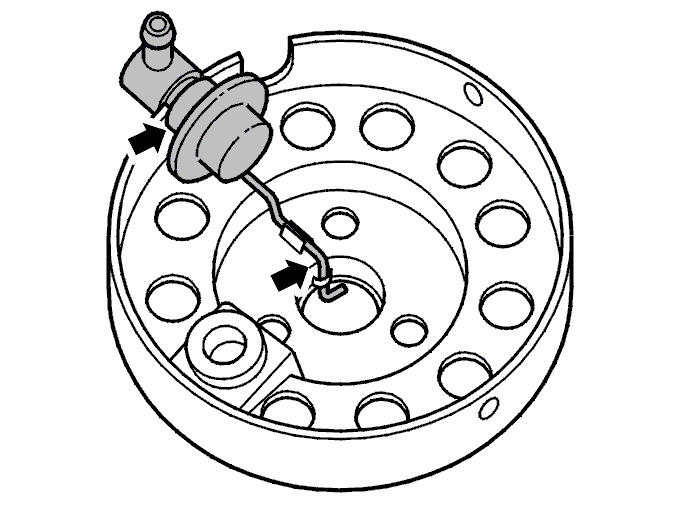

Fig 1: Identifying New Pressure Equalizer & Fuel Line

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the new pressure equalizer and fuel line.

NOTE: It is important that the fuel line is in contact with the bottom of the motor mounting. Also ensure that its connector is in contact with the bottom of the cut-out on the mounting.

Squeeze the mountings into place around the fuel line using a pair of pliers.
