Fuel Injection Nozzle, Atomizer And Outer Nozzle Head

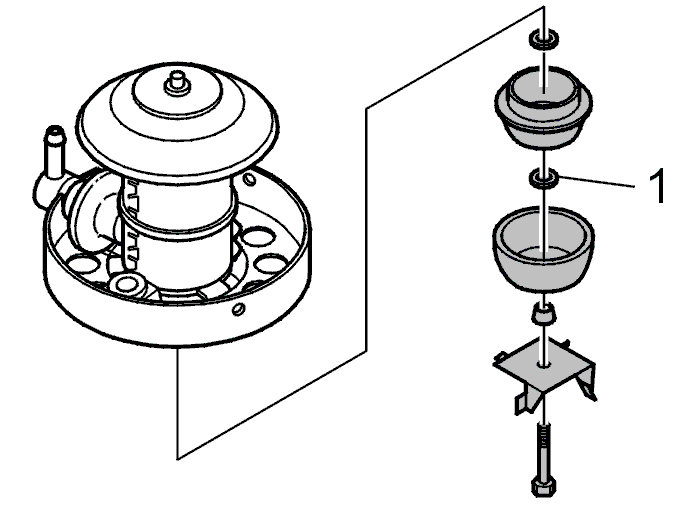

Fig 1: Fuel Injection Nozzle, Atomizer And Outer Nozzle Head

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the fuel injection nozzle and washer
NOTE: Gasoline and diesel versions have different fuel injection nozzles.
outer nozzle head (with washer against the gasoline fuel injection nozzle)
conical spacer with the cone pointing towards the outer nozzle head
atomizer.

on the screw.

Then install the screw and components onto the fan motor spindle. Tighten to 2 Nm .

Install the combustion chamber.

NOTE: The glow plug socket must be to the left of the lead-in for the fan motor wiring.
