Replacing the Heat Shield For the Thermostatic Expansion Valve

Removal

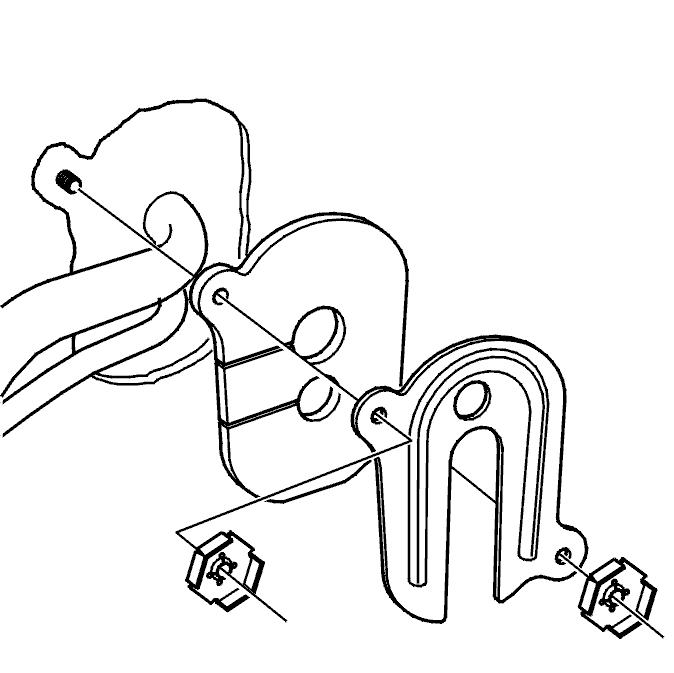

Fig 1: Heat Shield For TXV Valve
GLL105381Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

Installation

In reverse order.

NOTE: The heat shield is a replacement part for previous models. In these cases the firewall insulation in the engine compartment should be cut to the size of the heat shield.
