Motor, Windshield Wiper, Replacing: Installation

Windshield wiper motor

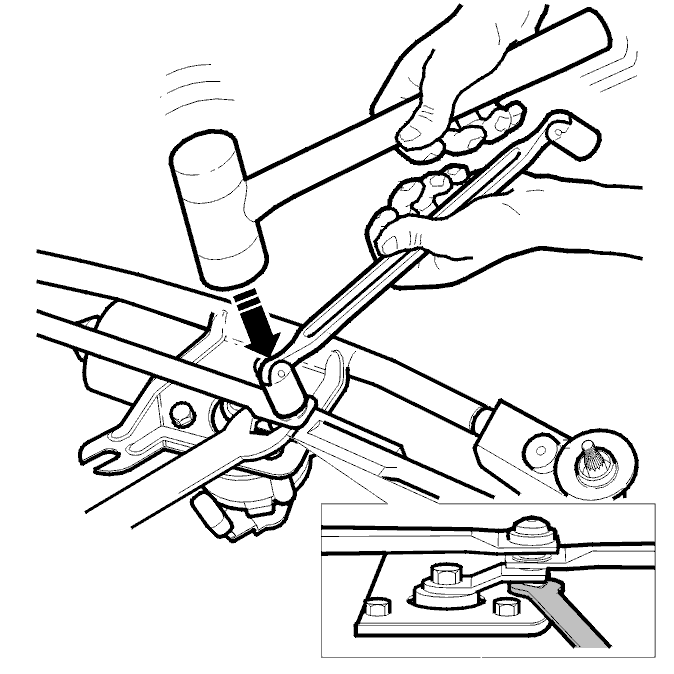

Fig 1: Tapping Control Arm Into Place Using Sleeve And Mallet

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lubricate the ball on the link arm using grease
Install the 3 screws for the windshield wiper motor
Position a wrench as support between the link arm and the bracket and screw head. See illustration
Position the control arm on the ball. Carefully tap the control arm into place. Use a sleeve and a mallet
Install the wiper mechanism. See Wiper Mechanism, Windshield, Replacing
Install the wiper arms. See Wiper Arm/Blade, Windshield, Replacing .
