Removing Heat Exchanger

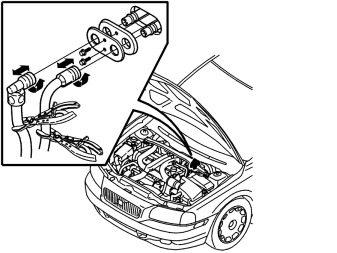

Fig 1: Identifying Engine Compartment Heater Hoses

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the heater hoses in the engine compartment, use special pliers: 1158957
• the seal and the plate.
• the brake light switch acc. to: Stop Lamp Switch, Replacing

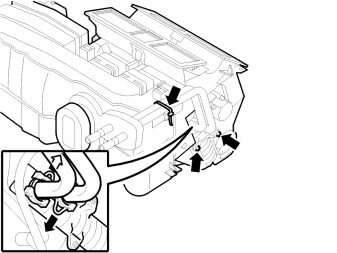

Fig 2: Identifying Tie Strap For Pipes

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the tie strap for the pipes
• the screws for the heat exchanger
• the mounting brackets for the pipes.

Position plenty of paper under the heat exchanger and around the pipes

Drain the coolant in a suitable container.

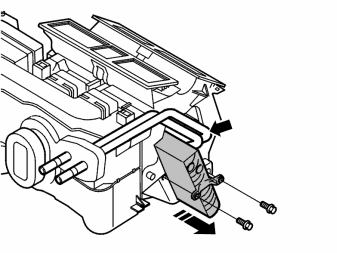

Fig 3: Identifying Heat Exchanger Removal

Courtesy of VOLVO CARS OF NORTH AMERICA.

Loosen the pipes and position them out of the way.

Pull out the heat exchanger.
